Neumann KH 120 II Two Way, DSP-Powered Nearfield Studio Monitor - Black or White - AES67 Available!

The KH 120 II is based on the same concept as its acclaimed predecessor but completely re-engineered for improved performance in all parameters: deeper bass, higher SPL capability and even better resolution. Internal DSP power allows for phase linear crossovers and room adaptive alignment via Neumann’s revolutionary MA 1 Automatic Alignment.

When Neumann released the KH 120 A in 2010, it was the beginning of an ongoing success story. Neumann monitoring has since become the reference of choice in countless studios around the world. The KH 120 II W follows the same philosophy as its predecessor and, in fact, all Neumann studio monitors: highest linearity, lowest distortion, no coloration, and perfect adaptability to any acoustic environment. Thanks to improved performance in all parameters and a powerful DSP engine, the KH 120 II W enables you to hear your tracks with even greater clarity and work more efficiently. Create mixes that translate optimally to all playback systems. With ease.

The KH 120 II W has an exceptionally linear frequency response from 44 Hz to 21 kHz (±3 dB). Not only that: It also linearizes the phase response! Which translates to clear mids with astonishing transparency as well as extreme accuracy in the time domain: precise impulse reproduction and finely resolved reverbs. This is made possible by DSP controlled electronics which allow for sophisticated crossovers avoiding the phase distortion caused by analog filters. The internal DSP also realizes new standards in tonal consistency. The KH 120 II W is made to extremely low tolerances of no more than ±0.5 dB!  And you can hear it, too: Stereo imaging is razor-sharp.

The KH 120 II W is designed for nearfield applications with a recommended listening distance of 1 – 2 meters (3 – 6 ft.). It is thus ideally suited to smaller rooms such as home and project studios as well as mixing and editing suites or as a surround speaker in large multichannel applications. Thanks to its outstanding linearity in a portable format, the KH 120 II W is also an excellent choice for creating a professional quality makeshift control room when working on location (e.g. orchestra/choir, live recording, film, broadcast).

The KH 120 II AES67 model variant offers integrated redundant AES67 audio network ports that are fully compliant with broadcast standards such as ST 2110, ST 2022-7 redundancy, and RAVENNA. At the same time, the KH 120 II W AES67 is compatible with DANTE-generated AES67 network streams.

Neumann engineers took great care to develop a patent pending amplifier technology which combines superior audio performance with the energy efficiency of Class D. Although the power amplifiers of the KH 120 II W deliver up to 145 W to the 5.25” woofer and 100 W to the 1” tweeter, they only consume 17 W at idle. Auto-standby reduces power consumption to 0.3 W when the KH 120 II W has not been used for a while, but can be deactivated.

Features

• High-precision drivers, Mathematically Modelled Dispersion (MMD) waveguide
• Linear frequency response 44 Hz … 21 kHz (±3 dB)
• Linear phase response 120 Hz … 16 kHz (±45°) with latency <2.6 ms
• DSP inside allows for room adaptive alignment via Neumann’s MA 1
• Razor sharp imaging due to extremely low tolerances (±0.5 dB)
• May be combined with other KH line speakers in immersive or surround setups

Specifications

• Free field frequency response ±3 dB -  44 Hz ... 21 kHz
• Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu)  -  <20 dB(A) SPL
• Max. SPL calc. in half space at 3% THD at 1 m (averaged between 100 Hz and 6 kHz) -  116.8 dB SPL
• Acoustical Principle -  Bassreflex, Ports at the front
• Analog input(s) -  XLR: analog electronically balanced
• Analog input impedance  -  24k Ohms
• Digital input(s) -  RCA (75 Ω): S/PDIF
• Input gain control (sensitivity)  -  0 dB ... -15 dB
• Output level control (output level in 1 m based on 0 dBu input level) -  94; 100; 108; 114 dB SPL
• Equalization: Bass -  0; -2; -4; -6 dB
• Equalization: Low-Mid  -  0; -2; -4; -6 dB
• Equalization: Treble -  +1; 0; -1; -2 dB
• Control -  Local; Network
• Crossover frequency -  1.7 kHz
• FIR phase correction  -  Linear phase (120 Hz ... 16 kHz; +/- 45°)
• Protection circuitry  -  Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers
• Output power woofer amplifier (THD+N with limiter deactivated: 10%) -  145 W
• Output power tweeter amplifier (THD+N with limiter deactivated: 10%) -  100 W

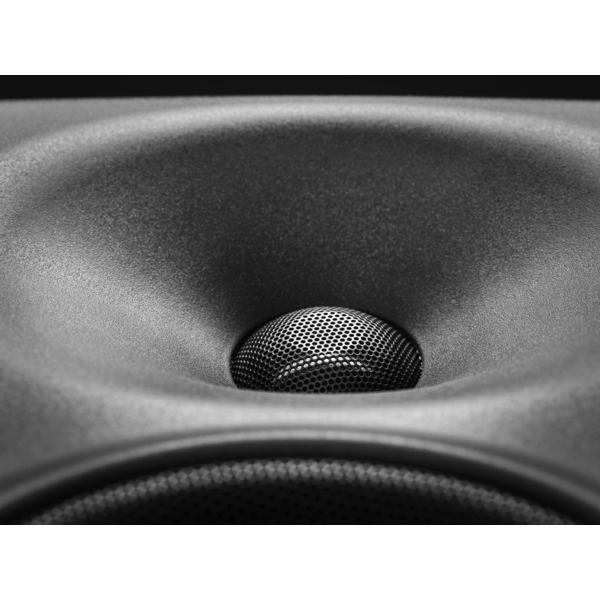

• Woofer -  130 mm (5.25") with protecting metal grille, white
• Tweeter  -  25 mm (1") with protecting metal grille, white
• Product dimensions (height x width x depth) -  287 x 182 x 227 mm (11.3 " x 7.16 " x 8.94")
• Product weight -  5.4 kg (11 lbs 14 oz)

What's Included

• 1 x KH 120 II W Studio Monitor
• 1 x Mains Cable US, white
• 4 x Self adhesive feet
• 1 x Safety Guide
• 1 x Supplement “Getting Started Quickly”
